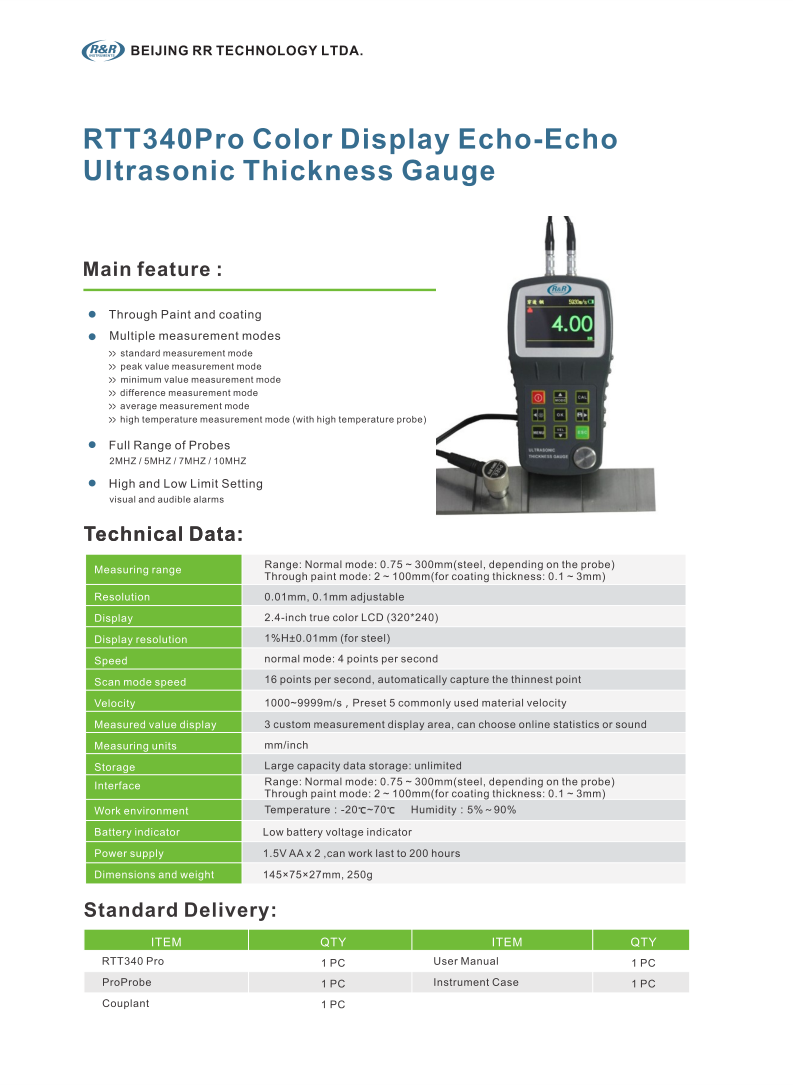

RTT340Pro Color Display Echo-Echo Ultrasonic Thickness Gauge
Main Feature: 1. Through Paint and coating 2. Multiple measurement modes - standard measurement mode - peak value measurement mode - minimum value measurement mode - difference measurement mode - average measurement mode - high temperature measurement mode (with high temperature probe) 3. Full Range of Probes selectable 2MHZ / 5MHZ / 7MHZ / 10MHZ 4. High and Low limit setting
Technical data:
Measuring range | Range: Normal mode: 0.75 ~ 300mm(steel, depending on the probe) Through paint mode: 2 ~ 100mm(for coating thickness: 0.1 ~ 3mm) | Resolution | 0.01mm, 0.1mm adjustable | Display | 2.4-inch true color LCD (320*240) | Display resolution | 1%H±0.01mm (for steel) | Speed | normal mode: 4 points per second | Scan mode speed | 16 points per second, automatically capture the thinnest point | Velocity | 1000~9999m/s,Preset 5 commonly used material velocity | Measured value display | 3 custom measurement display area, can choose online statistics or sound | Measuring units | mm/inch | Storage | Large capacity data storage: unlimited | Interface | TF card interface port, TF card can be used to store data USB port: for communication with PC use data management software | Work environment | Temperature:-20℃~70℃ Humidity:5%~90% | Battery indicator | Low battery voltage indicator | Power supply | 1.5V AA x 2 ,can work last to 200 hours | Dimensions and weight | 145×75×27mm, 250g |
Standard Delivery:
ITEM | QTY | RTT340 Pro | 1 PC | Probe | 1 PC | Couplant | 1 PC | User Manual | 1 PC | Instrument Case | 1 PC |
|
